Learning Assembler on Amiga #7

By users' requests, I built an index page of previous lessons. It’s here.

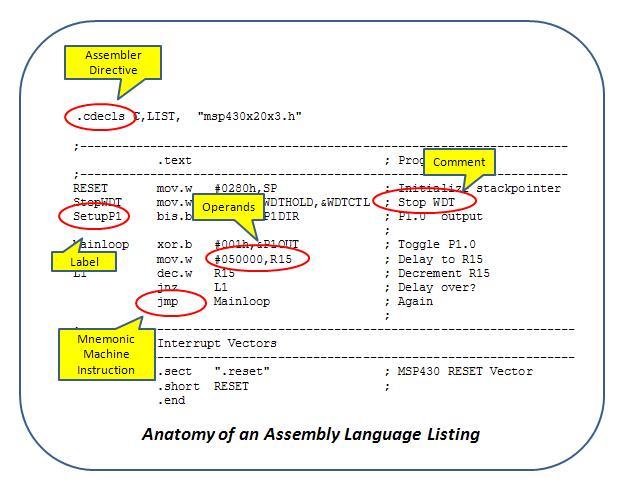

I took the picture from this robotics blog that I follow. Although it’s not directly linked to a 68K assembler, it is perfect to show all the same elements you will find in a typical assembler source code file.
You have commands or more properly directives. Then you have operands that can indicate a source or a destination. Finally, you have labels used to jump among blocks of code and comments indicators

Theory

The CPU handles everything in binary (bits) of course and we could work in binary too; that is if we want to employ a couple of decades and losing our minds to write down the simplest program that you can think of.
So someone smart came up with the idea of using mnemonics (directives) to represents instructions that the CPU would then parse in binary sequence to execute our requests.
The number of instructions available is very small compared to modern languages that offer lots of APIs to accomplish all sorts of complex tasks. When you write in assembler you don’t get much for free beside the extra luxury of talking directly to the machine heart and soul.

Putting all together

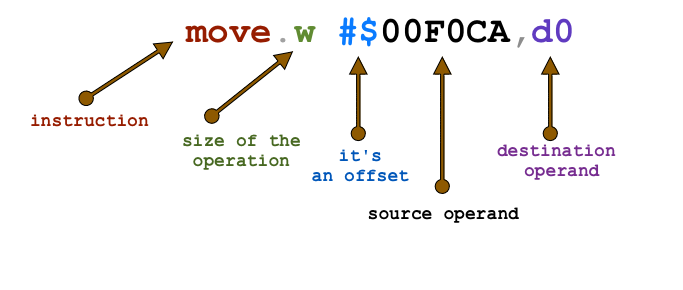

We have learned about instructions, sizing of information and addressing. Let’s put all together and see what it looks like.

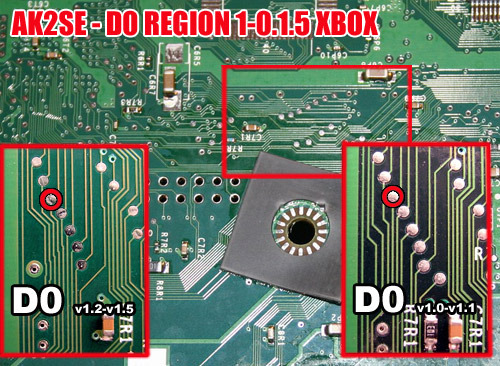

the .w indicates that the size of the operation you are performing is a word (two bytes) as shown in lessons 5 and 6. Alternatively, you can use a byte (.b) or .l (long word). D0 is a register and by far my most favorite because when back in the 90s I was hacking my XBOX v1 messing with D0 was matter of life and death of the hardware. Yes, I fried a couple of them…

Mouse Wait

The rockstar Scoopex has a great series of programming in assembler for Amiga in the form of vlogs. The existence of these Amiga posts is due to his inspiring videos. I got excited one day, running by accident on his YouTube channel and since then I wanted to have my joy of learning programming the Amiga in assembler.
In one of the most tedious ways possible that you can think of when comparing to how much time you can save when using higher-level languages. :-)
Watch the video first, it’s pretty short and then come back and we can go into details that Scoopex doesn’t cover because his target audience is a bit higher in the knowledge of where we’re right now. We will get there though. At some point in life :-)

The objective of this lesson

Write a program that waits that you press the left mouse button to exit. No other interaction will make the program to exit.

Logic

The key logic behind this program is to loop between the starting point of the program and the line where we check “are we there yet?”.
The starting point is marked with a label, which I called:
START:

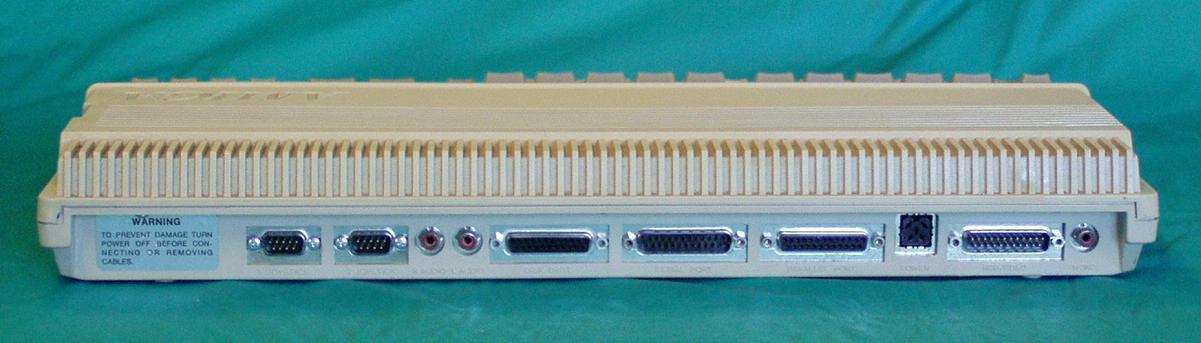

then we move the bit 6 (immediate) into the register $bfe001. A couple of things about that register. bfe doesn’t stand for bum fucking Egypt. The whole register $bfe001 is responsible for tracking the status of PORT 1 and PORT 2 for joystick and mouse.
You can understand more about all the possibility of controlling hardware operating with/thru registersgoing thru this bible. That is the Amiga Hardware Reference manual, for that particular register look at page 223.
Amiga system contains two complex interface adapters (CIA). These adapters are used to communicate with the outside world using input/output devices such as joystick. Data from those devices can be read from a set of chip registers. The CIAAPRA register can be used to monitor if joystick button is pressed. On every iteration of the main loop, we check if joystick (or mouse) button is pressed and, in this case, exit the program.
Following code checks both bit 6 and 7 on CIAAPRA – register and branches to exit if either one is set. Bit 6 is set if joystick (or mouse) in port 1 has its button pressed. Bit 7 is set if joystick (or mouse) in port 2 has its button pressed.
thx reaktor
Therefore our code now looks like the following:
START:
       btst #6,$bfe001
Which it stands for “check that bit 6 is detected ON in the registry $bfe001. You can read about what bit test (btst) can do from this manual. In this case, it returns zero if the bit 6 in the registry $bfe001 is ON. Otherwise, it returns a non-zero value.
That means, that on the next line we want to check whether or not we have received a non-zero value. And if we did, then we jump back to the start until we receive confirmation of “fire in the hole!” signal. So our code becomes:
START:
      btst #6,$bfe001
      bne START
bne stands for Branch Not Equal. Branching, umm what is that?!
In any language you might have used so far you are accustom in writing something like the pseudo code below:
IF i_am_awesome == true THEN print(”yeah”)
What happens in the backstage is a comparison that records the status of the operation (called flags in the status register) which indicates the result of the comparison. If the condition is met then the execution of the next line can detect that (Wikipedia: Branch)
The branching result/state is kept in a CC table or condition codes
cmp #value,<address>
We will be looking more deeply into the meaning of this very important component as we become more confident in the matter. I expect to touch it in a lesson or two.
So, to summarize what the bne instruction does is to evaluate if the previous test, branched, leaving a trace in the status register (Z Flag). If that condition is met then the code moves forward to the next instruction. Which will be RTS or return from a subroutine.
Final code as shown by Scoopex looks like this:
START:
     btst #6,$bfe001
     bne START
     rts
I bet you would have never guessed how involving a simple mouse click could have been this involving when written in assembler :-). I hope you enjoyed this lesson.
Keep retroing.
